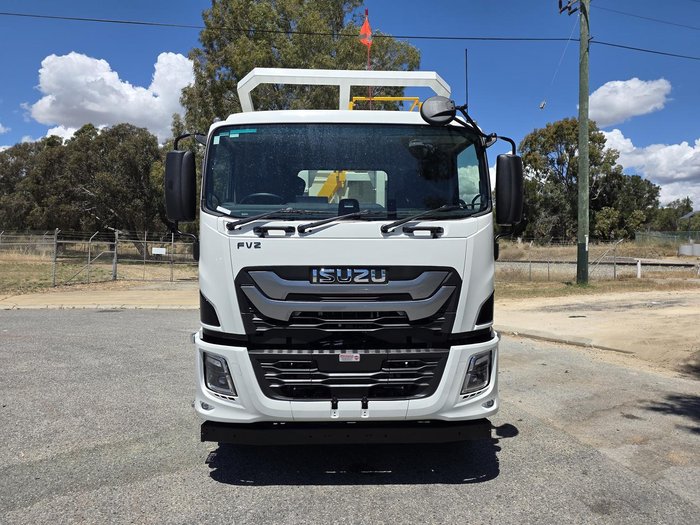

2025 Isuzu Fvz 260-300 Euro 6

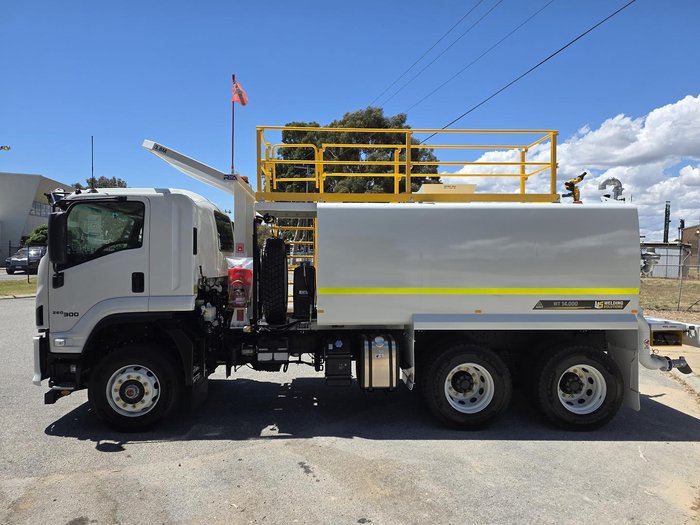

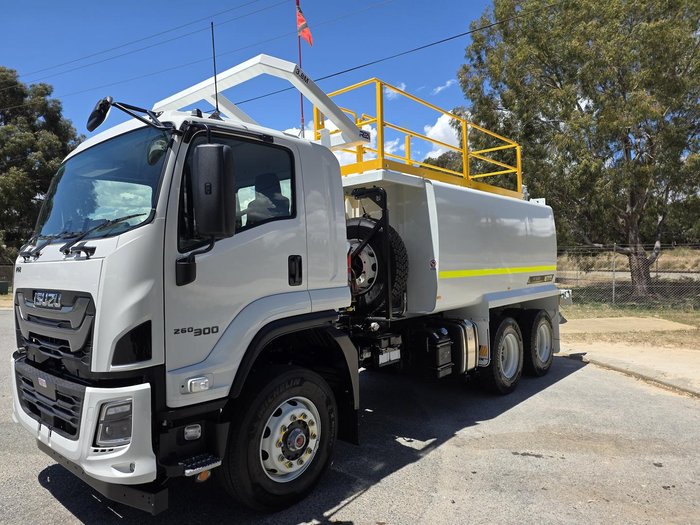

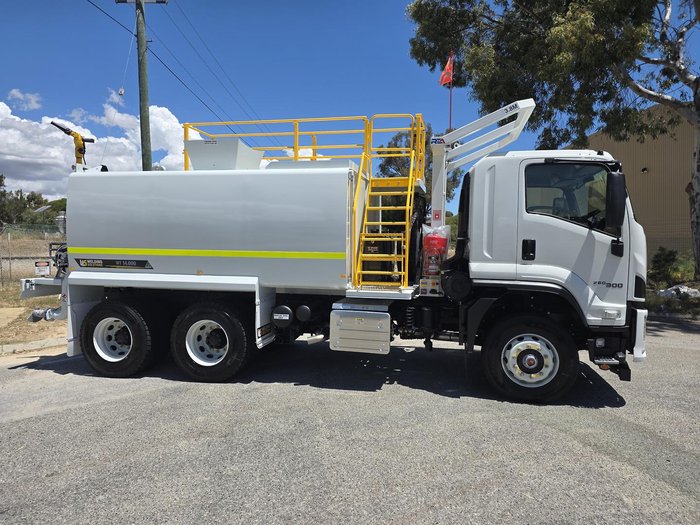

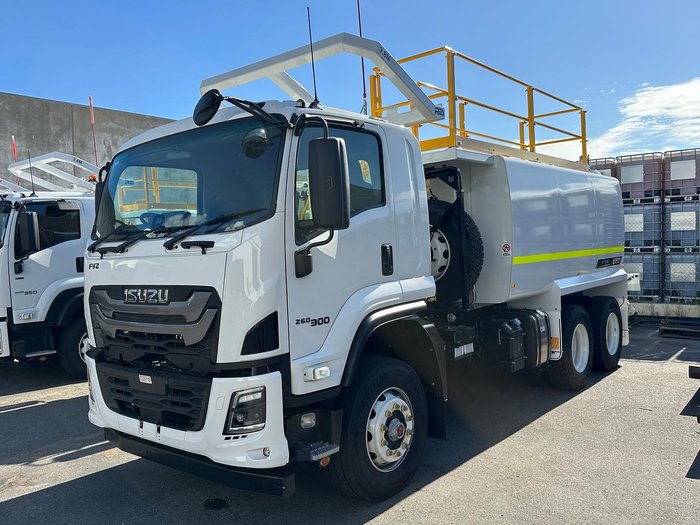

NEW 2026 ISUZU FVZ 260-300 Mine spec 14,000 Litre water truck.
Interstate delivery easily arranged. Built to go now.
OPTIONS AVAILABLE WITHOUT ROPS OR HANDRAILS.

Proudly Australian made to the highest standard.
Extremely reliable with reduced running costs.
Full spare parts backup and after sales support Nationwide.
Specifications for new 2026 steel 14,000 L water tank:

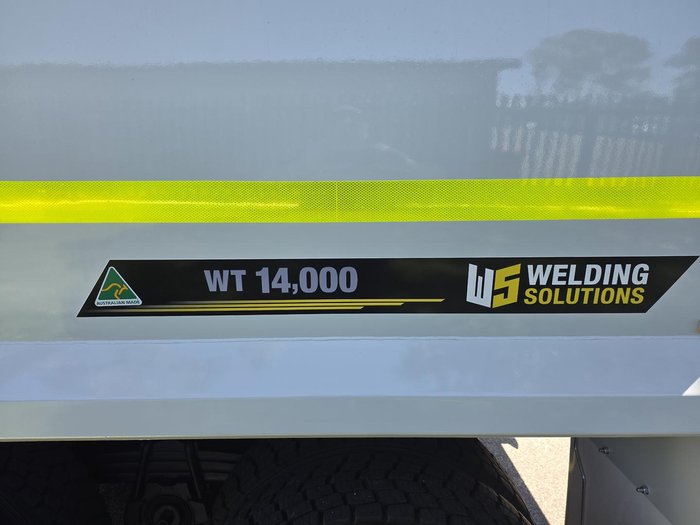

• Australian made 14,000 L steel water cart tank. Tank sides, ends and baffles pressed for greater strength.
• Bituminous coating to chassis for truck longevity and rust prevention.
• Designed for maximum payload, low profile design.
• Certified ROPS - Roll Over Protective Structure)
• High spec tank coating system, blasted and painted with 2 pack epoxy tank liner internally, high gloss automotive finish exterior.
• Steel guards with flexible mudflaps will be fitted.

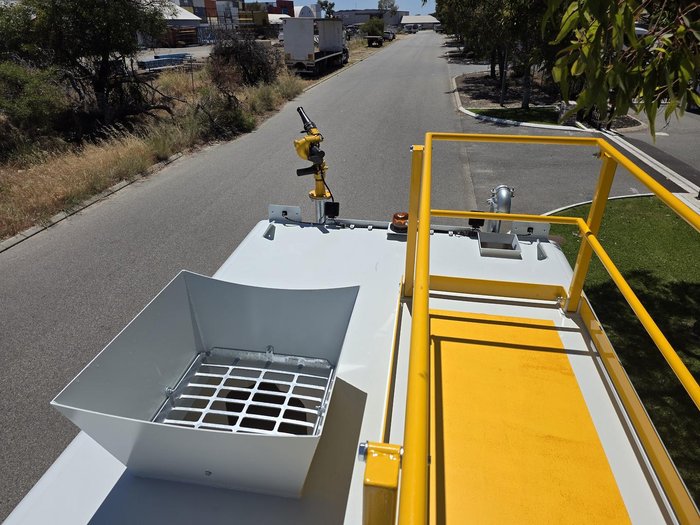

• Top fill funnel for standpipe filling, fitted off centre for ease of standpipe alignment, fitted with lockable cover.
• Road legal dump valve at highway level, 1" Ball valve.
• Splash guard around the front of the water tank preventing water run off over front of tank.

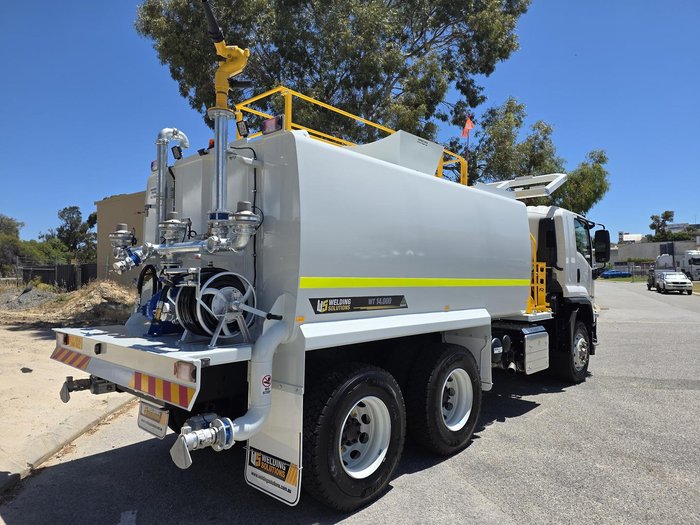

Pumping equipment and hydraulics:
• Southern Cross water pump size 100 x 65 x 250 hydraulically driven by 48 cc hydraulic motor close coupled, low maintenance with no coupling required.- New oil bath design.
• Low water pump shut off for water pump longevity
• Hot shift PTO and pump for hydraulic circuit- Protective parameters set.
• Pressure relief valve on hydraulic circuit pressure set on commissioning.
• WS Heavy duty hose reel manual rewind 1" rubber hose and adjustable fire fighting nozzle.

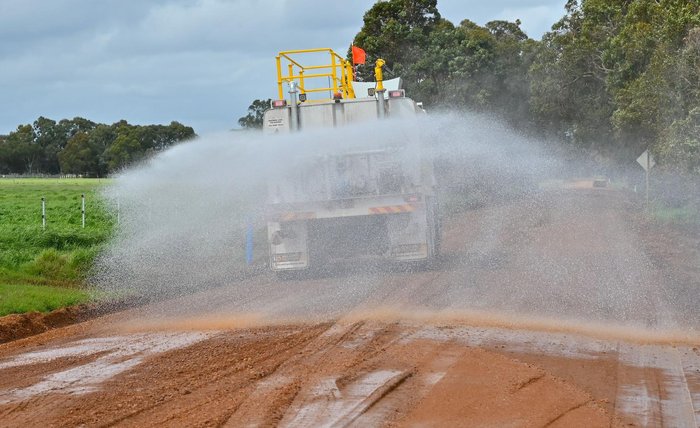

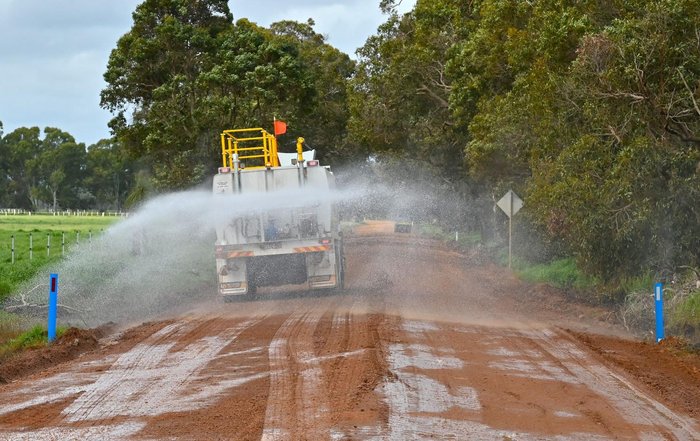

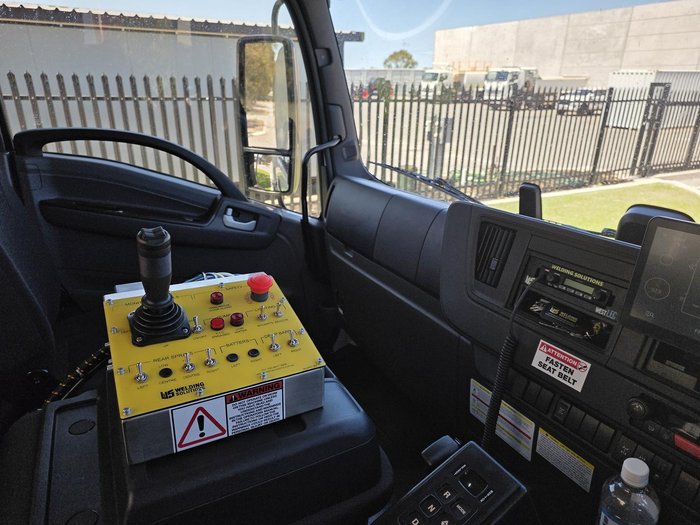

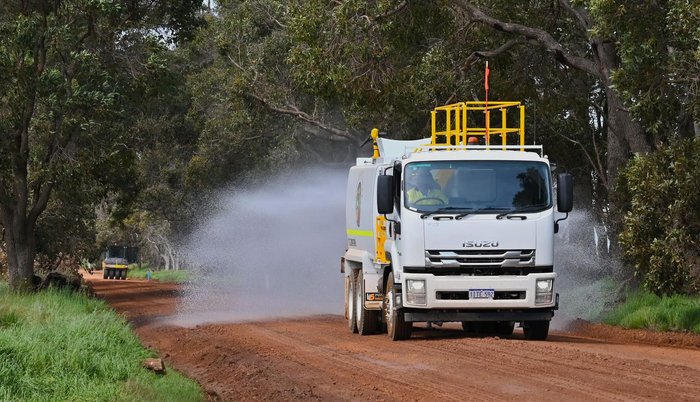

• 3 x 3" Spray Head valves Air operated from in-cab control box. Left, Right, centre, sprays.- Option 2 x extra batter sprays, or low spray.
• Quick exhausts valves fitted to all valves for quicker action.
• 1 x 3" discharge outlet with manual valve for water transfer duties.

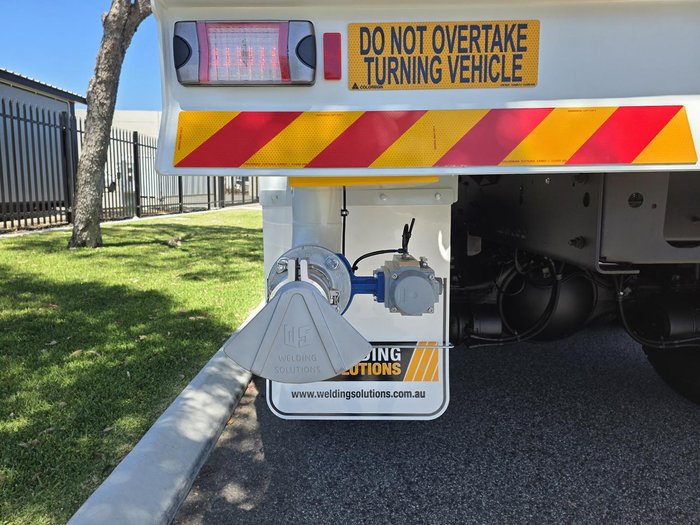

• 3" Rear fill point at chassis level with ball valve, cam lock fitting and cap.
• Pipe work set up with creek suction for self-filling,
• 2 X Gravity Fed Drops bars with 3" Fans- 4" Dribble bar if preferred.
• Elkhart Brass 65 mm Nitro electric water cannon, Heavy duty swivels, made in the USA. Straight stream nozzle, Optional electric adjustable nozzle available as an option.
• Pressure relief valve on water circuit to prevent cavitation of water pump when sprays are closed.
Electrical work:
• Electrical work to mining specifications
• 4 X Hella LED tail lights to rear bumper and on top of tank,
• 2x LED work lights,
• 2 x LED amber revolving beacon, 1 on ROPS, 1 on rear top of tank.
• Reverse alarm,
• Number plate light
• Pad lockable Locksafe battery and starter isolators,
• 2 x Emergency stops,1 inside cab 1 outside.
• Buggie whip aerial
• Side clearance lights,
• Headlight’s On kit

Safety:
• Safety labels around the vehicle and on the tank module for identification.

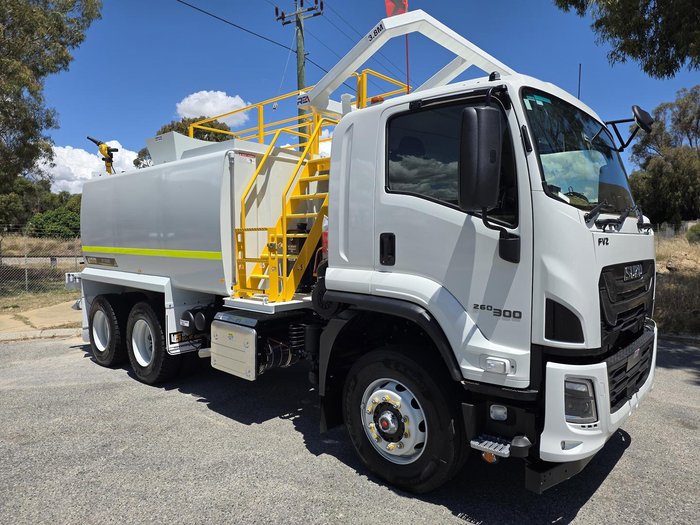

• Safety hand railing with stairway, new quick fold down system, lays down in 1 motion saving time and eliminates lost railing during mobilisations. Blasted and painted Safety yellow. - Can supply without railing if preferred.
• Non slip surface to top of tank.

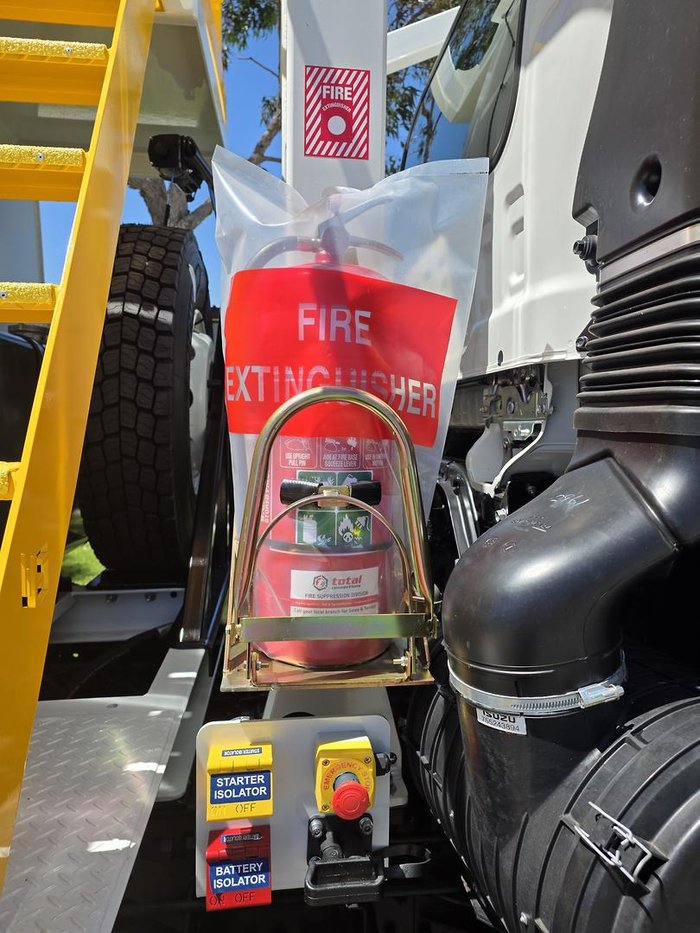

• Tested and tagged 2 X 9 KG dry powder fire extinguisher fitted to over centre holding bracket, fitted to ROPS
• High Vis reflective yellow tape around the vehicle 75 mm width.
• Operators and spare parts manual in cab.
• Front mounted spare wheel carrier with electric winch.
• Stainless steel toolbox
• Warranty on tank: 12 months manufacturer’s warranty on parts and labour. Excluding consumable items.
Pricing is Plus GST
On road charges at extra cost.
Interstate delivery and local licencing easily arranged.
Finance options available.
Immediate delivery and ready for licensing.
Demo unit available to try before you buy.
