2025 Isuzu Fyh 300-350

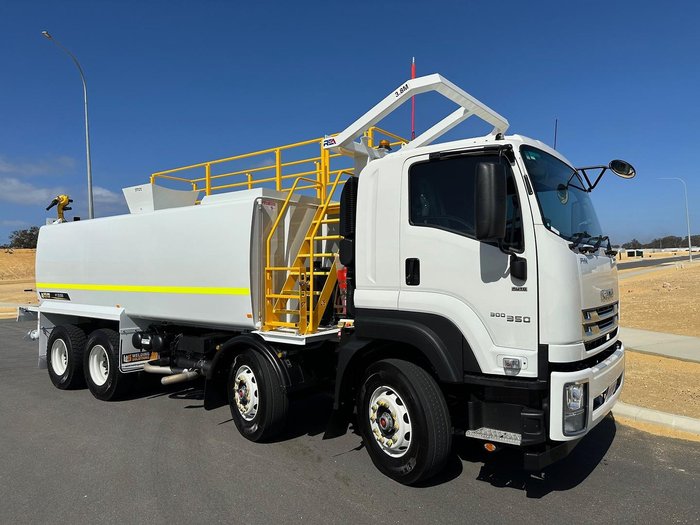

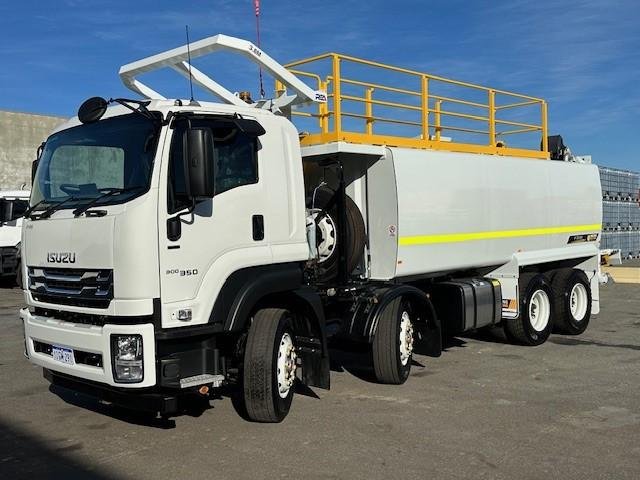

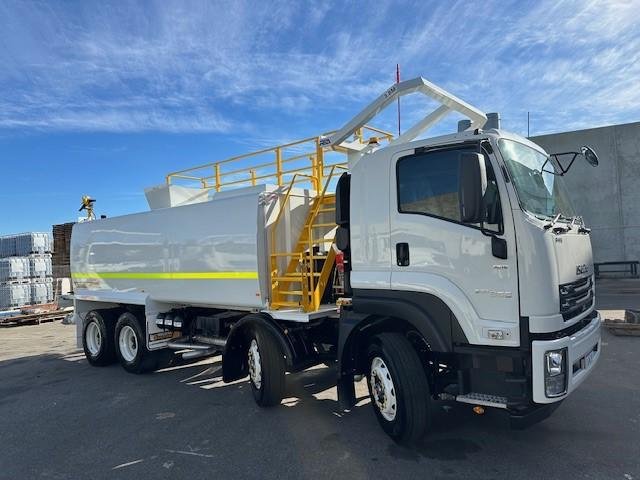

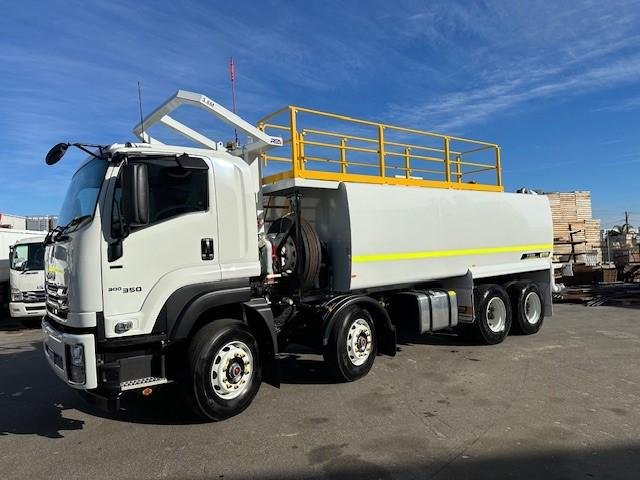

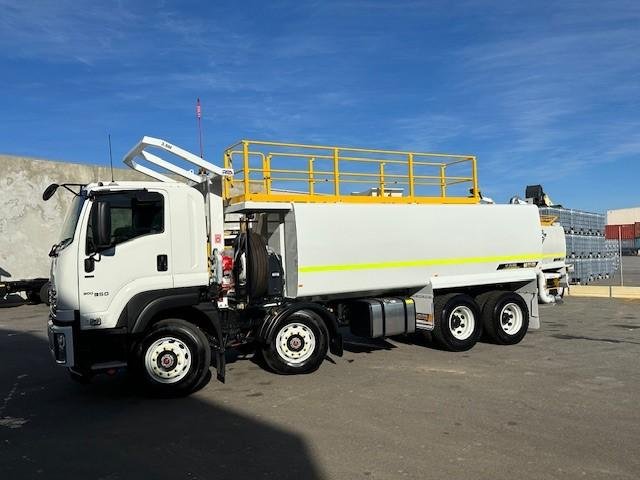

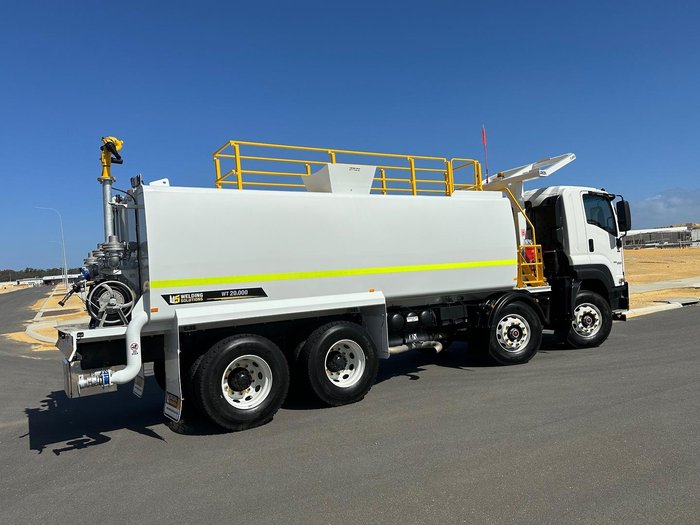

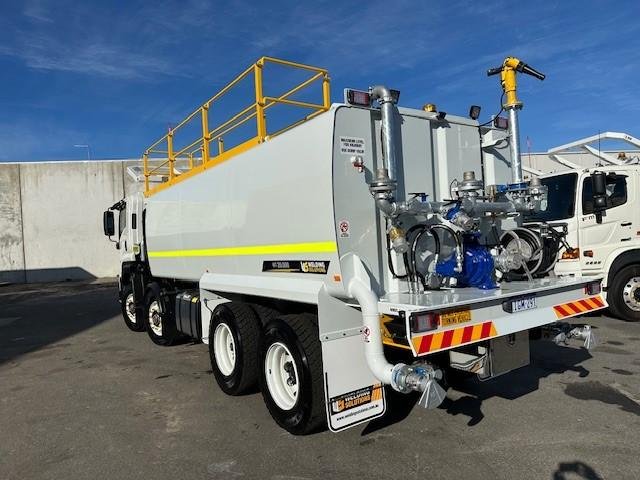

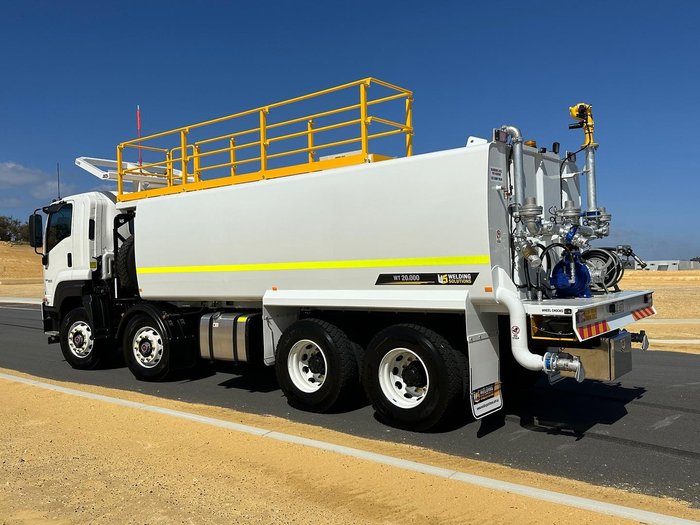

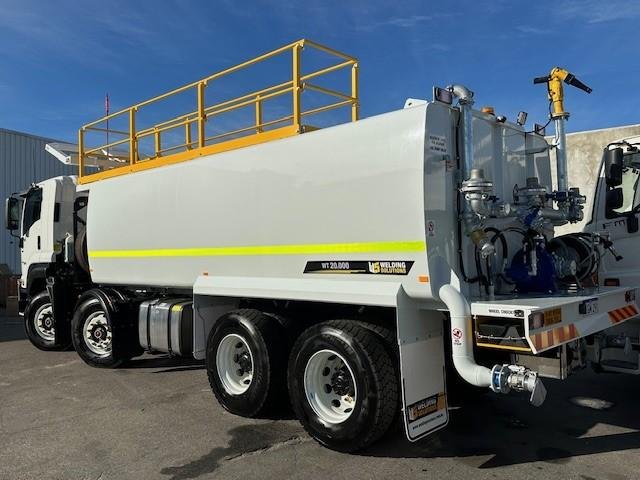

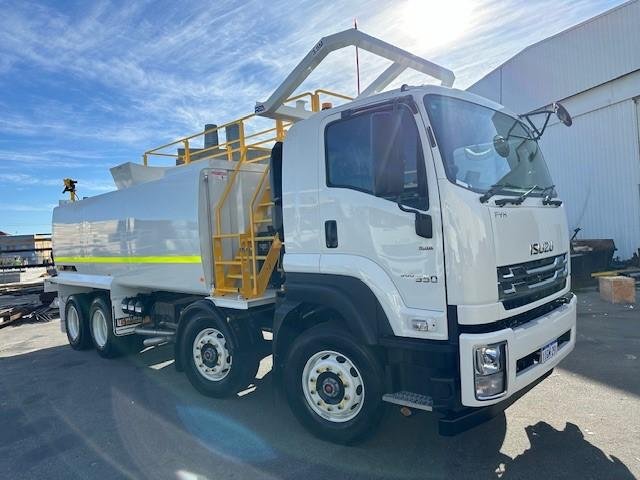

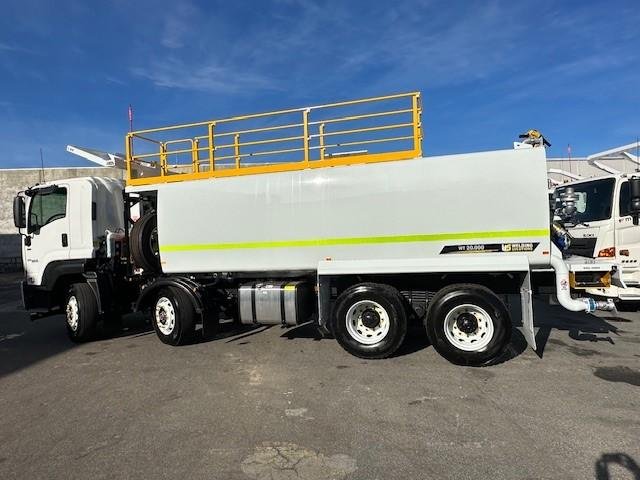

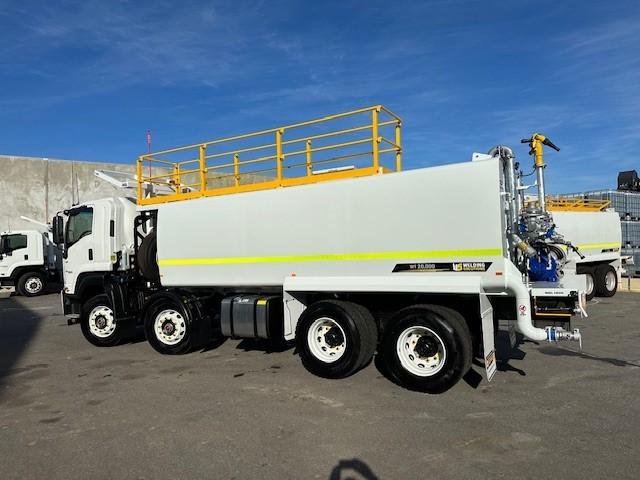

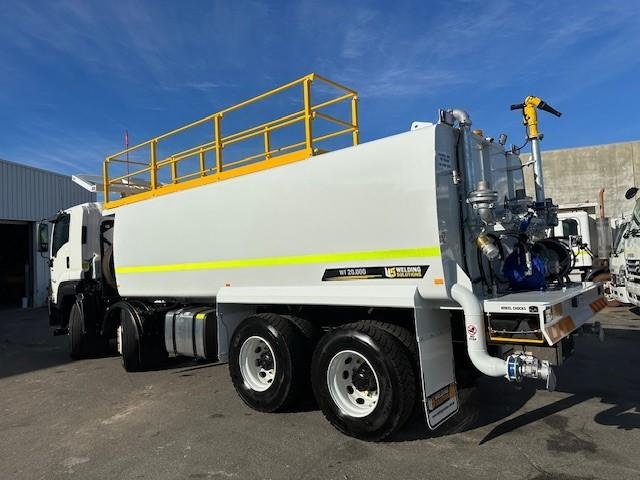

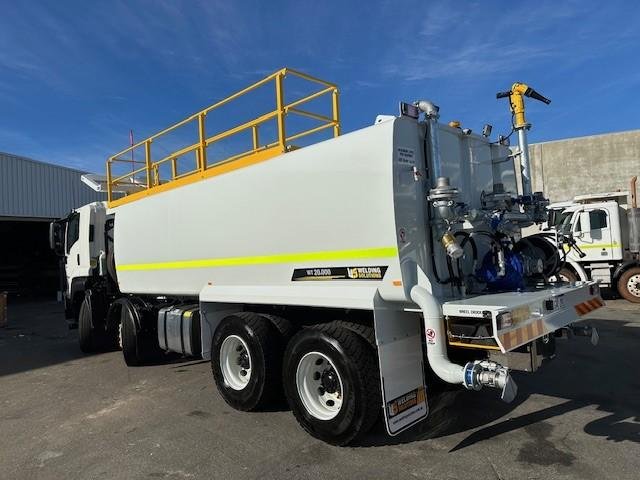

NEW 2025 ISUZU FYH 300-350 HP Mine spec water truck with 20,000 Litre water tank and ROPS.
** Immediate delivery ready for licencing**

Australian made to the highest standard for mining conditions.
Specifications for new 2025 steel 20,000 L water tank:
Water Tank
• Australian made tank built strong for the mining industry.
• Steel guards with flexible mudflaps will be fitted.
• Top fill funnel for standpipe filling, fitted off centre for ease of standpipe alignment, fitted with lockable cover.
• Road legal dump valve at highway level, 1" Ball valve.
• Splash guard around the front of the water tank preventing water run off over front of tank.
• Remote gearbox breather fitted.
• Spring mounted to new 8X4 Isuzu 8X4 AUTO.

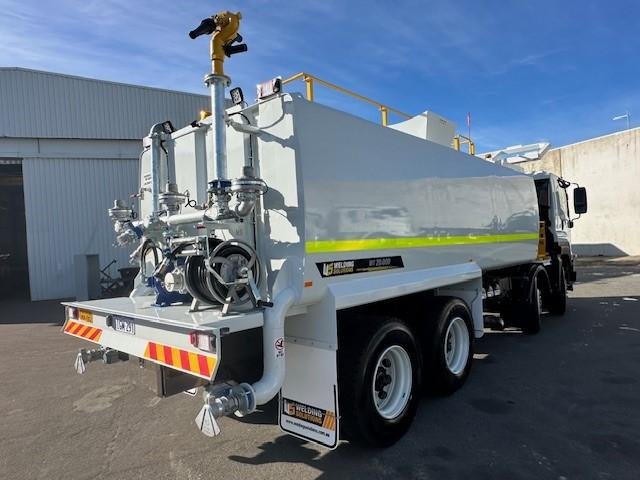

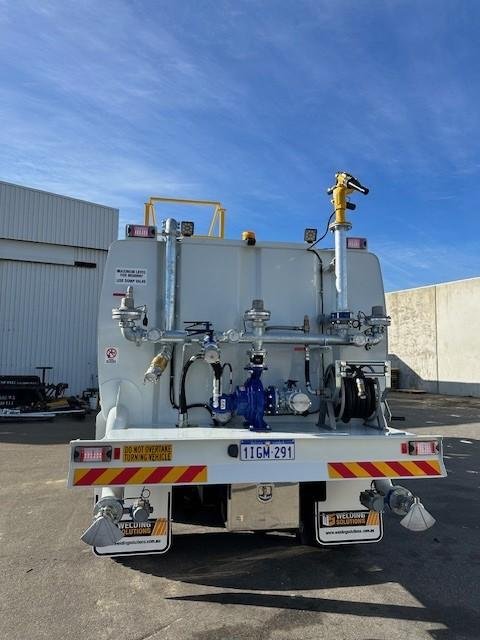

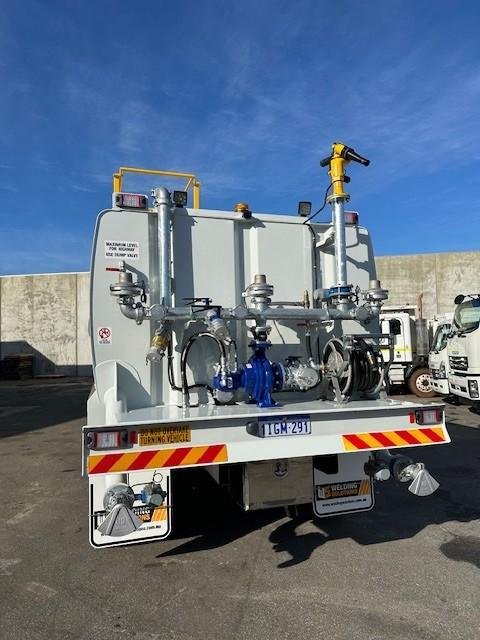

Pumping equipment and hydraulics:
• Southern Cross water pump size 100 x 65 x 250 hydraulically driven coupled, low maintenance with no coupling required.
Low water pump shut-off for longevity
• Bituminous coating to chassis for rust prevention.
• Hot shift PTO and pump for hydraulic circuit- Parameters set for protection.
• Pressure relief valve on hydraulic circuit pressure set on commissioning.
• Behind cab hydraulic tank with 200 L of 68 grade hydraulic oil with high flow spin on return filter.
• WS Heavy duty aluminium manual retractable 1" rubber hose and adjustable fire fighting nozzle.

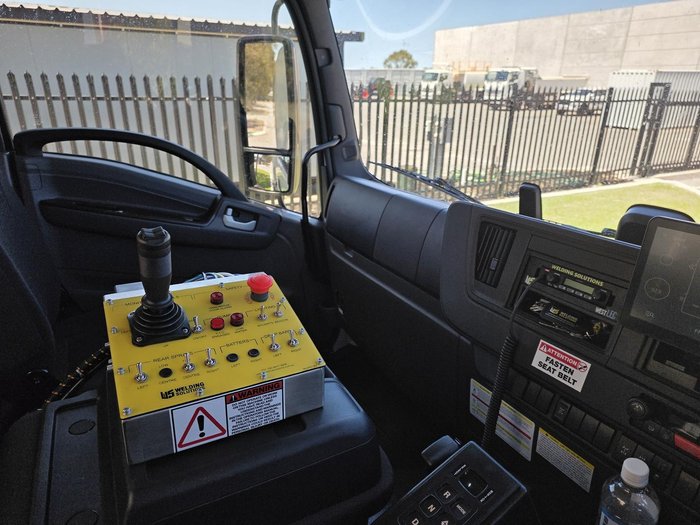

• 3 x 3" Spray Head valves Air operated from in-cab control box. Left, Right, centre, sprays.
• Quick exhausts valves fitted to all valves for quicker action.
• 1 x 3" discharge outlet with manual valve for water transfer duties.
• 3" Rear fill point at chassis level with ball valve, cam lock fitting and cap.
• Pipe work set up with creek suction for self-filling,
• 2 X 5" gravity fed drop bars.
• Elkhart Brass 65 mm Nitro electric water cannon, Heavy duty swivels, made in the USA. Straight stream nozzle, Optional electric adjustable nozzle.
• Pressure relief valve on water circuit to prevent cavitation of water pump when sprays are closed.

Electrical work:
• Electrical work to mining specifications with braided harness.
• 4 X Hella LED tail lights to rear bumper and on top of tank,
• 2x LED work lights,
• 2 x LED amber revolving beacon, 1 on ROPS, 1 on rear top of tank.
• Reverse alarm,
• Number plate light
• Pad lockable Locksafe battery and starter isolators,
• 2 x Emergency stops, 1 inside cab 1 outside.
• Buggie whip aerial
• Side clearance lights,
• Headlight’s On kit
• Jump start receptacle

Safety:
• Safety labels around the vehicle and on the tank module for identification.
• Safety hand railing with stairway, new quick fold down system, lays down in 1 motion saving time and eliminates lost railing during mobilisations. Blasted and painted Safety yellow.
• Non slip surface to top of tank.
• Tested and tagged 2X 9 KG dry powder fire extinguisher fitted to over centre holding brackets, fitted to ROPS
• High Visibility reflective yellow tape around the vehicle 75 mm width.
• Operators and spare parts manual in cab.
• Certified ROPS fitted
• Spare wheel carrier with Electric winch.
• Warranty on tank: 12 months manufacturer’s warranty on parts and labour. Excluding consumable items.

Pricing is plus on-road costs.
Delivery Interstate easily arranged.
In House finance options available.
Can supply without ROPS at a discount.
** Immediate delivery**
