2025 Sitrak G5s G5S 6X4 Cargo

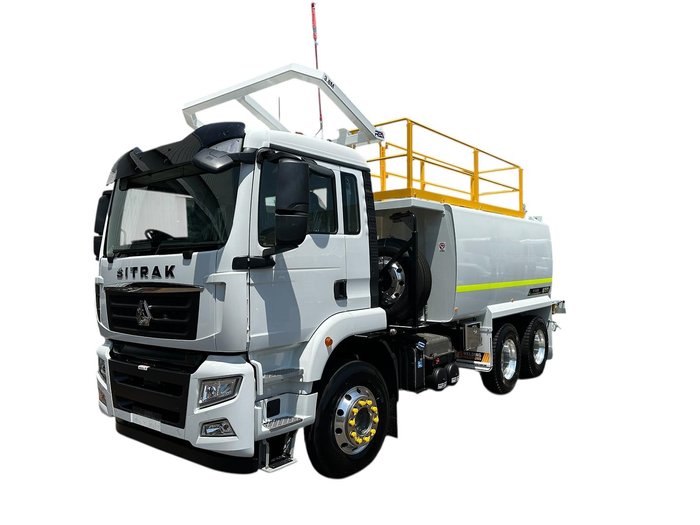

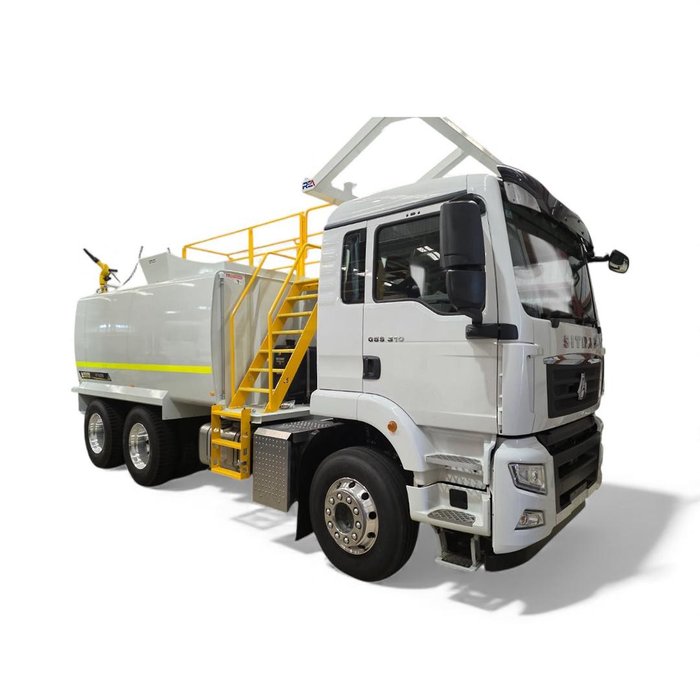

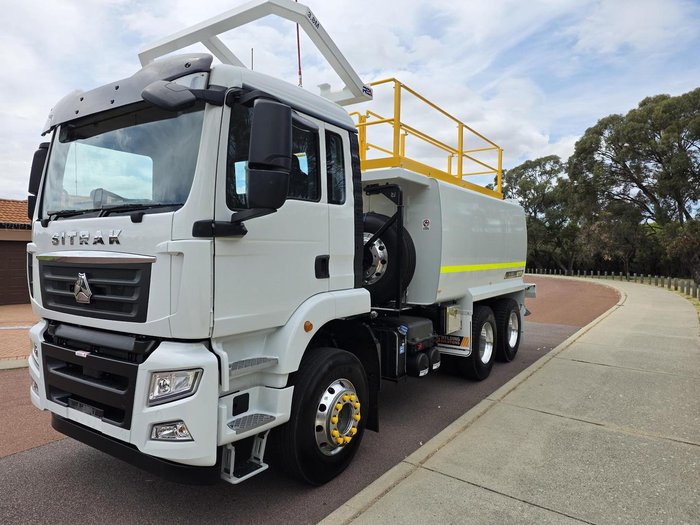

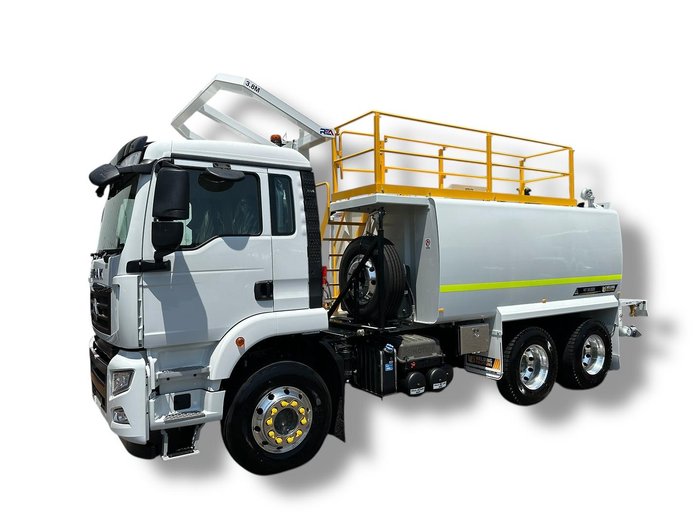

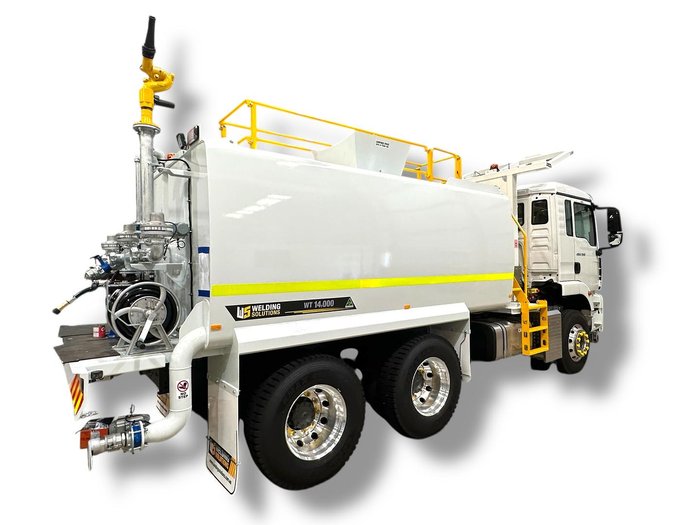

NEW Sitrak G5S 6X4 Mine spec water truck with 14,000 Litre water tank and ROPS.
Interstate delivery easily arranged.

Proudly Australian made tank to the highest standard.
Extremely reliable with reduced running costs.
Full spare parts backup and after sales support.
Specifications for new 2025 steel 14,000 L water tank:
Water Tank
• 14,000 L steel water cart tank. Tank sides, ends and baffles pressed for greater strength.
• High quality surface treatment and internal paint system.
• Steel guards with flexible mudflaps will be fitted.
• Top fill funnel for standpipe filling, fitted off centre for ease of standpipe alignment, fitted with lockable cover.
• Road legal dump valve at highway level, 1" Ball valve.
• Splash guard around the front of the water tank preventing water run off over front of tank.
• Remote gearbox breather fitted.
• Spring mounted to new 6X4 Sitrak G5S 6x4 AUTO.

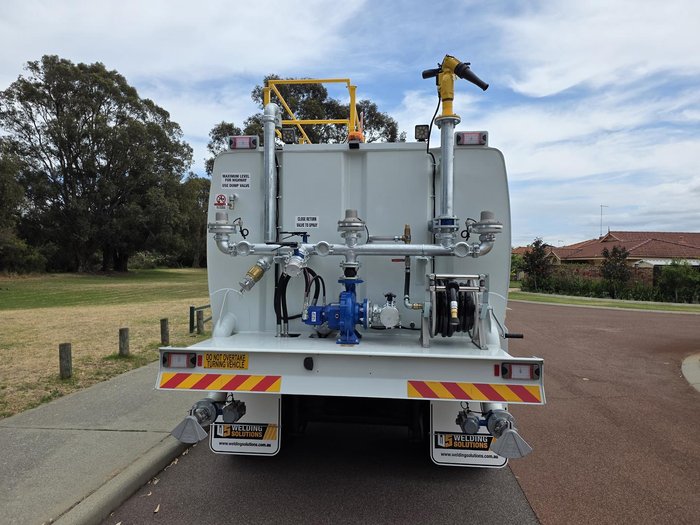

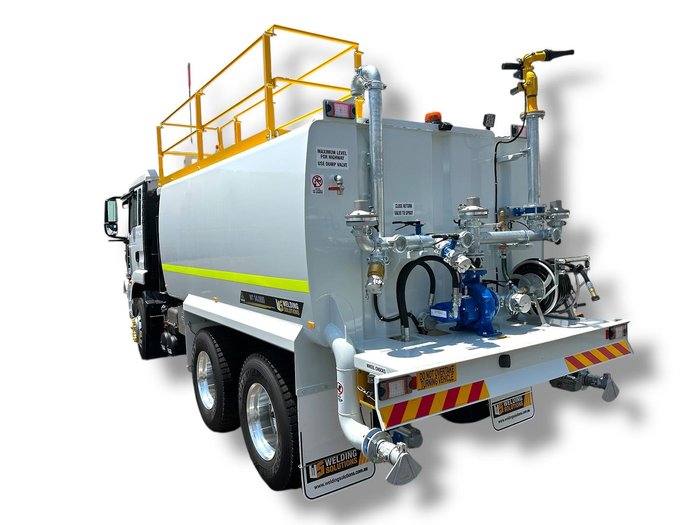

Pumping equipment and hydraulics:
• Southern Cross water pump size 100 x 65 x 250 hydraulically driven by Permco 48 cc hydraulic motor close coupled, low maintenance with no coupling required.
• Hot shift PTO for hydraulic circuit
• Pressure relief valve on hydraulic circuit pressure set on commissioning.
• Behind cab hydraulic tank with 200 L of 68 grade hydraulic oil with high flow spin on return filter.
• WS Heavy duty hose reel manual rewind 1" rubber hose and adjustable firefighting nozzle.

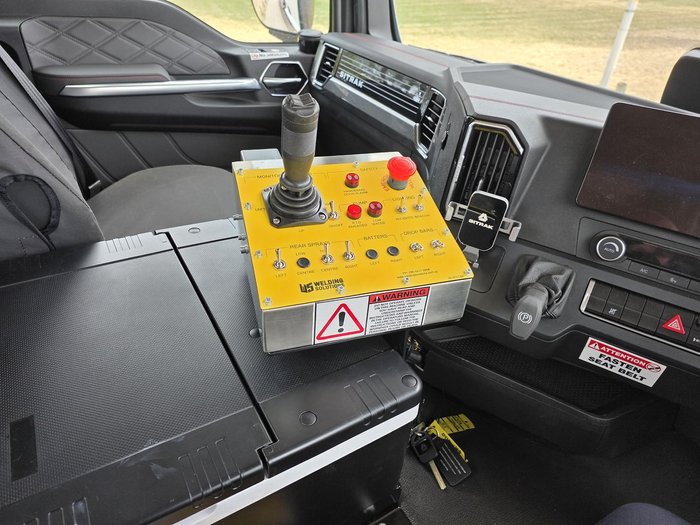

• 3 x 3" Spray Head valves Air operated from in-cab control box. Left, Right, centre, sprays.
• Quick exhausts valves fitted to all valves for quicker action.
• 1 x 3" discharge outlet with manual valve for water transfer duties.
• 3" Rear fill point at chassis level with ball valve, cam lock fitting and cap.
• Pipe work set up with creek suction for self-filling,
• 2 X Gravity Fed Drops bars
• Elkhart Brass 65 mm Nitro electric water cannon, Heavy duty swivels, made in the USA. Straight stream nozzle, Optional electric adjustable nozzle available as an option.
• Pressure relief valve on water circuit to prevent cavitation of water pump when sprays are closed.
Electrical work:
• Electrical work to mining specifications
• 4 X Hella LED taillights to rear bumper and on top of tank,
• 2x LED work lights,
• 2 x LED amber revolving beacon, 1 on ROPS, 1 on rear top of tank.
• Reverse alarm,
• Number plate light
• Pad lockable Lock safe battery and starter isolators,
• 2 x Emergency stops, 1 inside cab 1 outside.
• Buggie whip aerial
• Side clearance lights,
• Headlight’s On kit

Safety:
• Safety labels around the vehicle and on the tank module for identification.

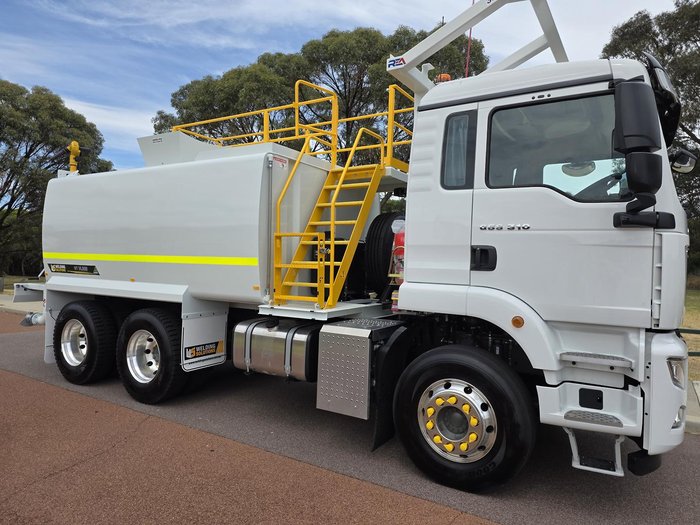

• Safety hand railing with stairway, new quick fold down system, lays down in 1 motion saving time and eliminates lost railing during mobilisations. Blasted and painted Safety yellow. - Can supply without railing if preferred.
• Nonslip surface to top of tank.
• Tested and tagged 2 X 9 KG dry powder fire extinguisher fitted to over centre holding bracket, fitted to ROPS
• High Vis reflective yellow tape around the vehicle 75 mm width.
• Operators and spare parts manual in cab.
• Certified ROPS fitted
• Front mounted spare wheel carrier.
• Warranty on tank: 12 months manufacturer’s warranty on parts and labour. Excluding consumable items.
Ready for immediate delivery.
Interstate transport and finance options can easily be arranged.
Pricing is plus on roads and GST.
